89400 Cylindrical Roller Thrust Bearings

Home>> Roller Thrust Bearings>>Roller Thrust Bearings >> 89400 Cylindrical Roller Thrust Bearings

89400 Cylindrical Roller Thrust Bearings

89400 Cylindrical Roller Thrust Bearings

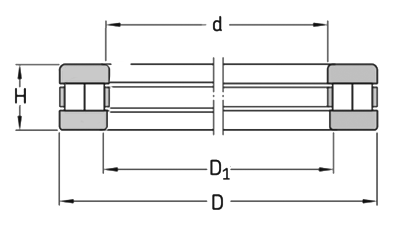

Drawing

Datasheet

Bearing No.	Dimensions			Mass	Bearing No.	Dimensions			Mass
Bearing No.	d	D	H		Bearing No.	d	D	H
–	mm	mm	mm	kg	–	mm	mm	mm	kg
89412	60	130	42	2.8	89430	150	300	90	35.5
89413	65	140	45	3.5	89432	160	320	95	42
89414	70	150	48	4.2	89434	170	340	103	52
89415	75	160	51	5.95	89436	180	360	109	60
89416	80	170	54	7.05	89438	190	380	115	65.5
89417	85	180	58	8.65	89440	200	400	122	75
89418	90	190	60	9.95	89444	220	420	122	84.5
89420	100	210	67	13.5	89448	240	440	122	88
89422	110	230	73	17.5	89452	260	480	132	114
89424	120	250	78	22	89456	280	520	145	142
89426	130	270	85	27	89460	300	540	145	153
89428	140	280	85	29.5
